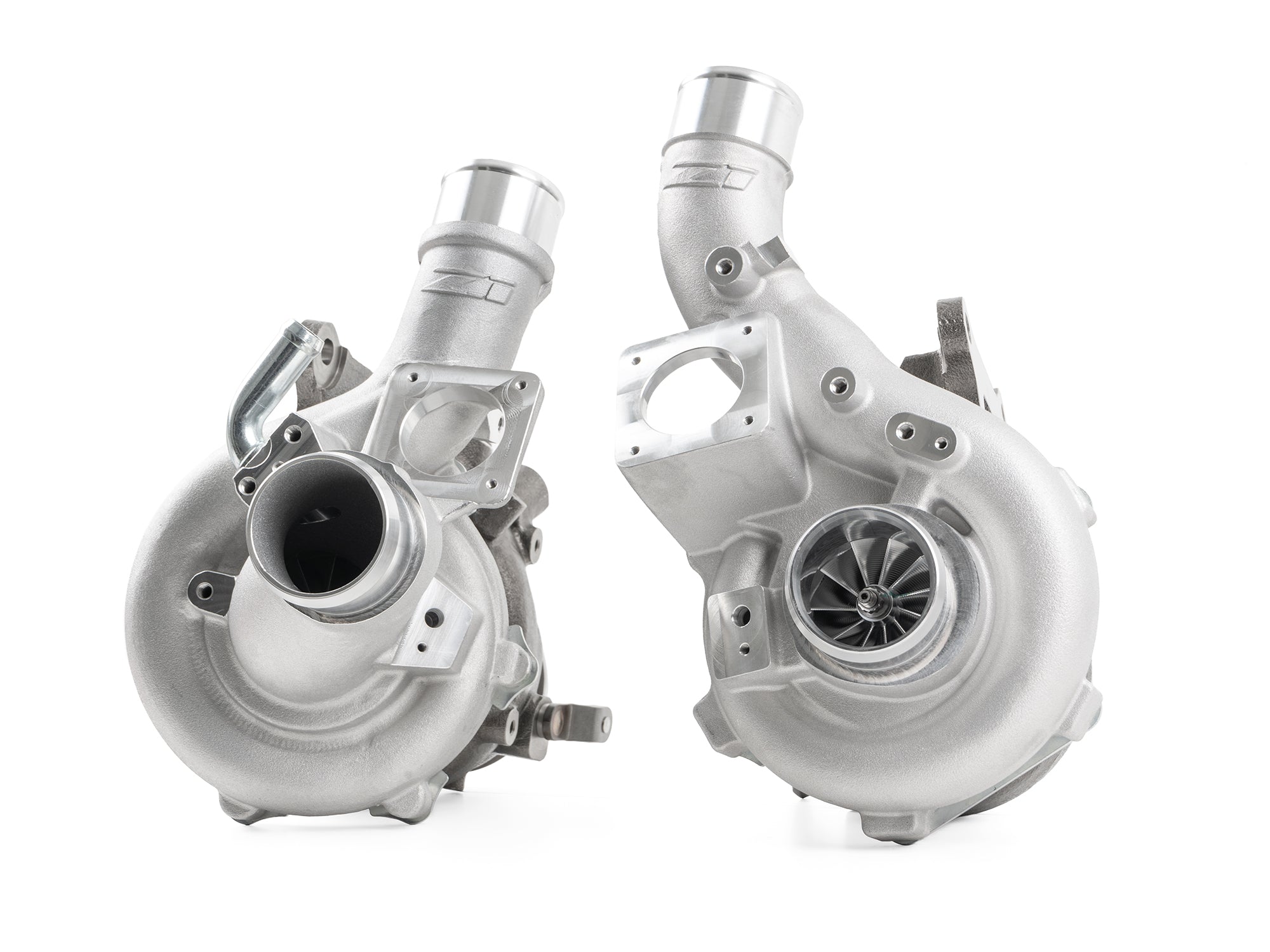

Z1 Q50 / Q60 VRX80B Bolt-On Ball Bearing Turbochargers

Z1’s VRX80B ball bearing turbochargers are upgraded versions for the Infiniti Q50 and Q60, featuring a larger compressor wheel than the VRX70B for higher peak power. Ideal for those prioritizing maximum power over quick spool, these turbos require a built engine to perform at their best.

Why VRX turbos?

These turbochargers are designed and engineered with precision to deliver exceptional power gains, good response, and a thrilling driving experience. Like the VRX70B's, they are made using a 100% new turbo assembly, recycling ZERO parts from the frame or cartridge of the original turbo. Because of this, no core charge or return is required, making them the most affordable and practical upgrade available! They feature a high-efficiency billet compressor wheel, advanced turbine blade design, and larger .70 A/R turbine housing, providing a significant increase in airflow and supporting excellent power gains on cars with appropriate fuel systems and other modifications. Not only do these turbochargers provide an incredible performance boost, but they are also built to last. The Z1 VRX80 Turbochargers feature high-quality construction with durable materials, ensuring they withstand the toughest driving conditions and continue to perform at their best for years to come.

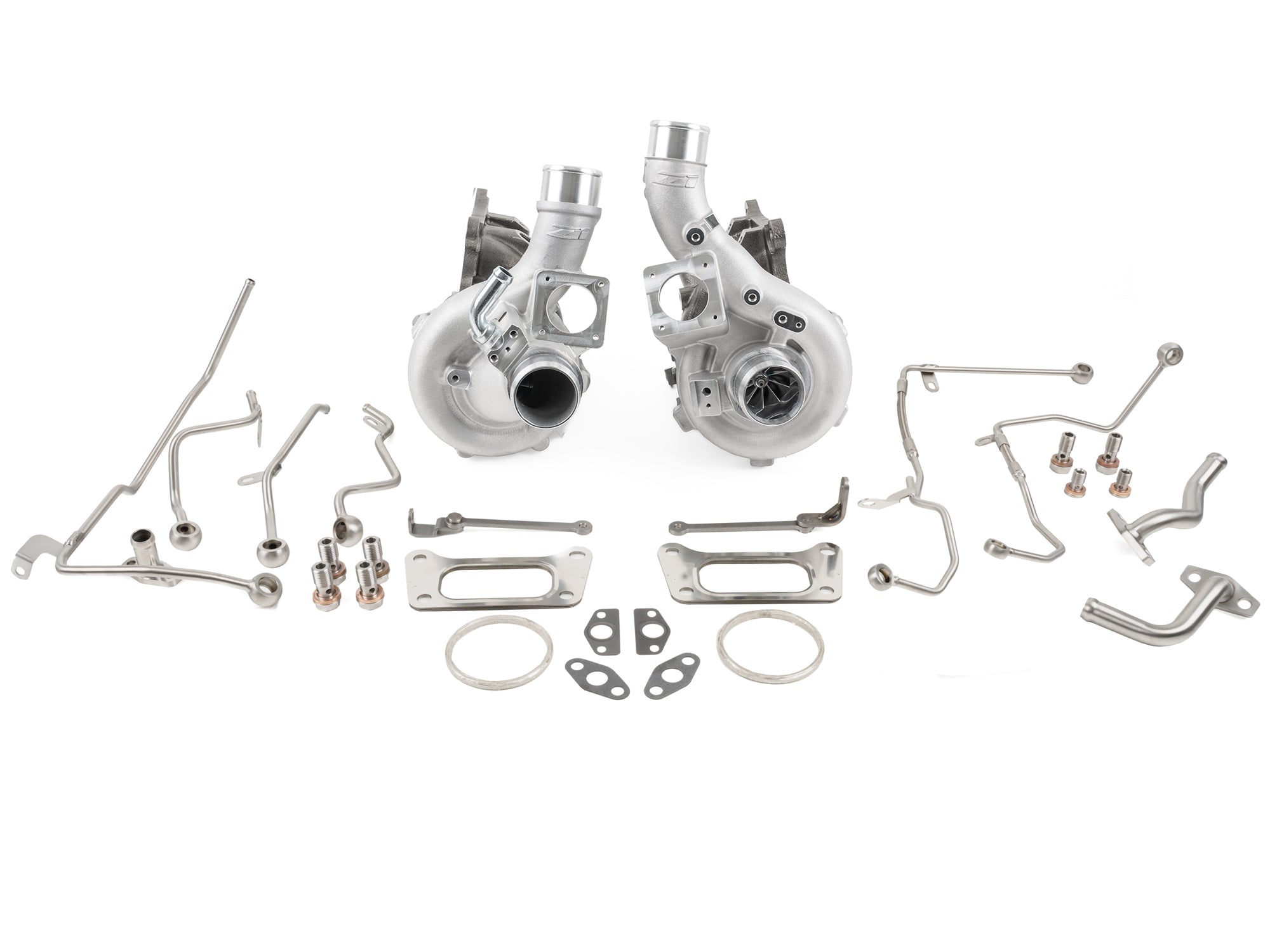

The Z1 VRX80 Turbochargers are a direct bolt-on upgrade and include all the necessary components, such as new oil and water lines, gaskets, and hardware.

Why larger turbos?

As you read that you probably thought to yourself "I want more power, duh", but what if we told you that's not the only thing you stand to gain from larger turbos?

The stock turbos on your VR30 are small. We're talking "looks like they belong on a Honda Fit," small. This is great for engine response but means that they don't perform well at higher RPMs, especially as you increase boost with a tune. A Q50 with increased boost pressure will feel very responsive and quick, but when you pass peak power in the power band, they start to feel asthmatic and power starts dropping...fast. This occurs because the stock housings are incapable of flowing enough air to support the demand from the engine. Tuners often continue to increase boost pressure to compensate, however, this creates excessive pressure pre-turbine which in turn increases heat and makes the susceptibility to detonation much higher. At this point, the reason for upgraded turbos becomes obvious: larger turbos flow a greater volume of air with less restriction.

Z1's VRX80 Turbos features a .70 A/R turbine housing, boasting a substantial increase in flow over the stock .53 A/R housings. This means they are more efficient at producing power and require less boost pressure to achieve the same power levels. This also reduces turbine speeds and makes it easier to manage the heat produced by the turbos. More importantly, it helps the engine generate more horsepower towards the peak where sports cars are meant to be driven. To combat boost creep we maximized the available surface area of the wastegate port by designing a unique port shape. On this version of our VRX Turbo, we opted to utilize ceramic ball bearing CHRA's to further improve response and reduce spool time.

Installation Note: The VRX80 reuses your Q's existing wastegate actuator and speed sensor (on Red Sport applications) and must be configured properly when installed. Please understand this is a critical process, and failure to install and adjust the wastegate actuator properly will result in issues when operating and tuning the car. For this reason, we recommend these turbos be installed by a competent and reputable performance shop.

When at this level of performance, we highly recommend installing blow-off valves to handle boost relief. If you're not intending to install blow-off valves, we suggest speaking with your tuner first. See all of Z1's BOV options HERE.

Specifications

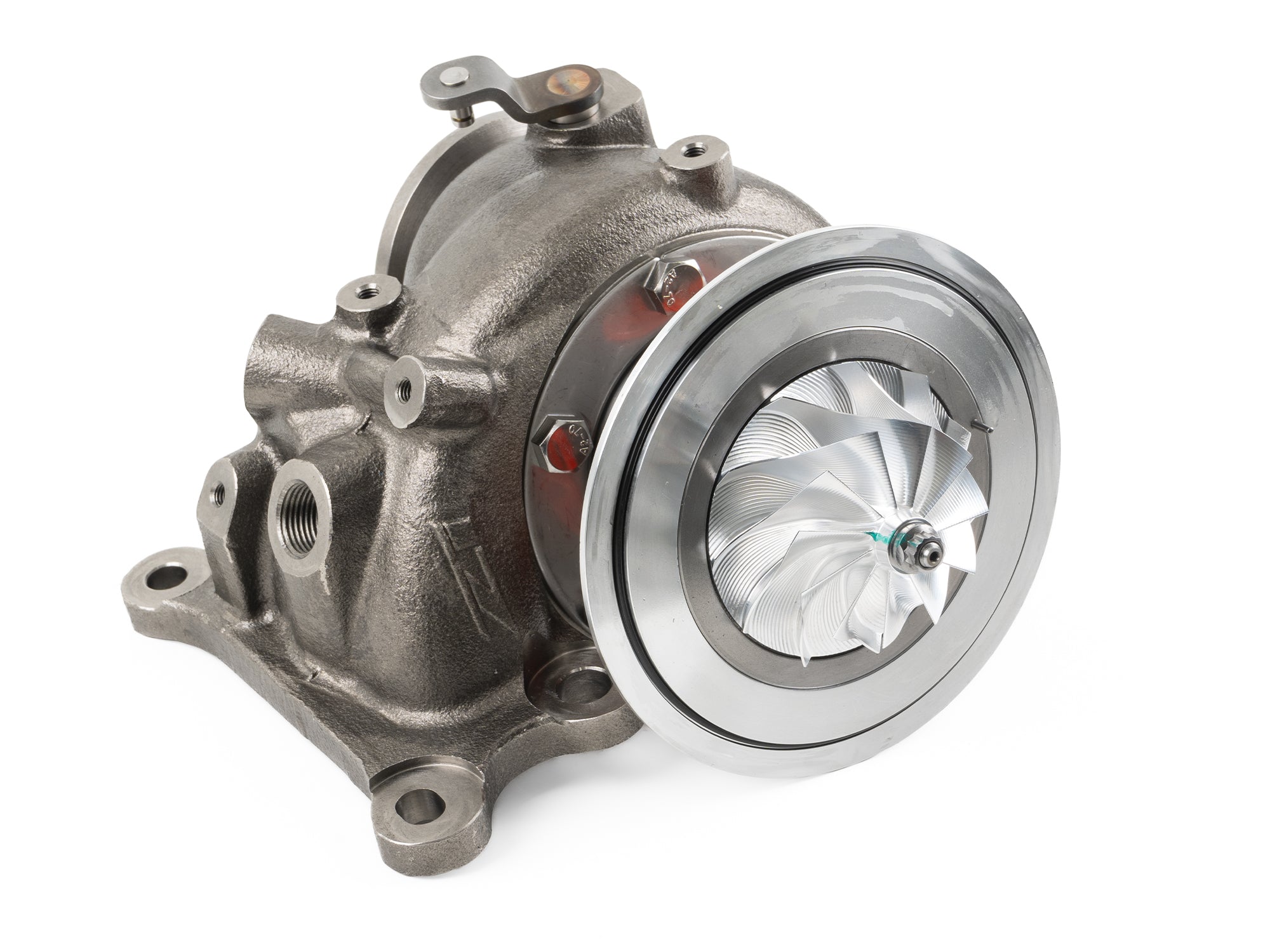

• Ceramic Ball Bearing CHRA
• Turbine Housing
  • .70 A/R (vs .53 A/R Stock)
  • Material - Industry Leading D5S
• Turbine Wheel
  • Inducer – 53.9mm
  • Exducer – 47.0mm
  • Material – Inconel 713C
• Compressor Housing
  • .60 A/R (vs. .52 A/R stock)
• Compressor Wheel
  • Inducer - 53.1mm
  • Exducer - 71.0mm
  • Material - Billet 7075 Aluminum
  • Fin Count - 11

Features

• No core required
• Track tested
• VSR balanced rotating assembly
• Custom billet compressor wheel
• Custom turbine wheel
• Reuses factory wastegate actuator
• Direct bolt-on replacement for factory turbos
• Compatible with factory cats and any aftermarket cats that use stock flange placement
• Capable of supporting well beyond 800+hp with proper fueling and supporting mods.
• AWD option includes new motor mount brackets, designed to clearance the larger turbos

Fits:

• 2016+ Infiniti Q50 Sedan || 3.0t
• 2017+ Infiniti Q60 Coupe || 3.0t
